How To Limit Windows Update Bandwidth On The Windows 10

Windows 10 has an active mechanism to set bandwidth limits and optimize it according to required updates and downloads. Limiting bandwidth for Windows update ensures your concern for data limit and does not hog all the bandwidth for one single purpose only. It allows you to browse the web, download other files, watch movies online or play games while the update is taking place within its limit.

Understand that this mechanism applies to your computer system only and cannot find the internet activity on other computers settled on the local network. Hence, other devices tend to experience reduced internet speed during the update on your computer. Yet, Windows 10 Fall Creators update v1709 brought us a handy feature by addressing the issue of excess internet speed hog up. You can also look for great hacks to extend Wi-Fi signals strength within home. Well, let us understand for now how one can set bandwidth limits on Windows 10 update.

How To Set Bandwidth Limit On Windows 10 Update

There are two ways by which we can change the bandwidth limit; one via Settings and other via Group Policy Editor.

Method 1: Set Bandwidth Limit On Windows 10 Via Settings

To find the steps required to disable bandwidth limit on Windows 10, follow the steps mentioned below.

Step 1: Press Windows logo + I button the keyboard to open Settings.

Step 2: Click on Update & Security. Scroll down to find Advanced options.

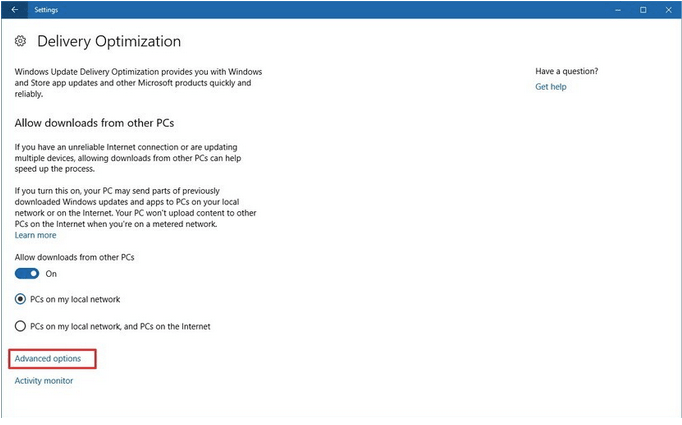

Step 3: At this window, click on the ‘Advanced options’ link.

Step 4: Choose Delivery Optimization and click on Advanced Options.

How To Set Bandwidth Limit On Windows 10 Update

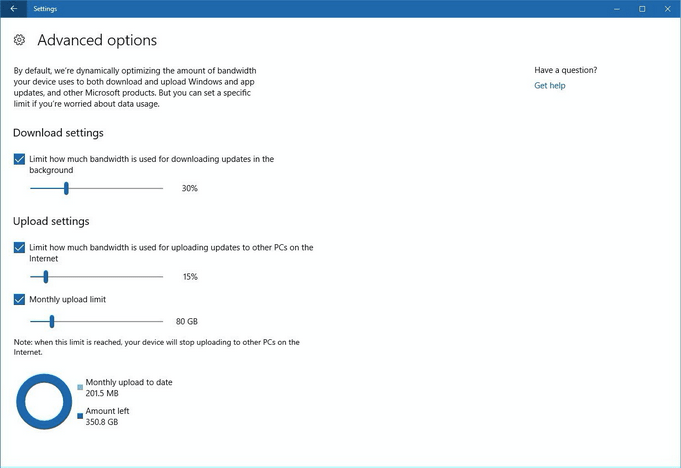

Step 5: Here, you can make changes in download and upload settings as per requirement. For example, under ‘Download Settings’, you can limit the bandwidth used for downloading updates in the background. It has been set up as 45% by default, and the slider can help you restrict bandwidth settings.

Step 6: Under ‘Upload Settings’, you can limit bandwidth for Windows update as and how required and Monthly upload limit. The slider is available for your assistance.

Limit Windows Update Bandwidth

Step 7: Go to Delivery optimization once again and enable ‘Allow downloads from other PCs’. In case if you skip this step, none of the above steps is applicable, and you won’t be able to limit bandwidth for Windows update.

Method 2:  Set Bandwidth Limit On Windows 10 Via Group Policy Editor

If you are using Windows10 Pro or version 1703, the above method may not apply directly. However, Group policy editor makes it possible to use Windows 10 bandwidth limiter. For this method, follow the steps mentioned below.

Step 1: Press Windows key + R at the same time on the keyboard and the Run command box will appear.

Step 2: Type gpedit.msc and click OK. This step will open the Local Group Policy Editor.

Step 3: Follow the path as mentioned. Computer configuration > Administrative Templates > Windows Components > Delivery Optimization.

Set Bandwidth Limit On Windows 10 Via Group Policy Editor

Step 4: Double click on the option of ‘Maximum Download Bandwidth (percentage)’.

Step 5: Make sure to select the Enabled option. Enter the bandwidth limit manually or using the menu slider.

Step 6: Click Apply and then OK.

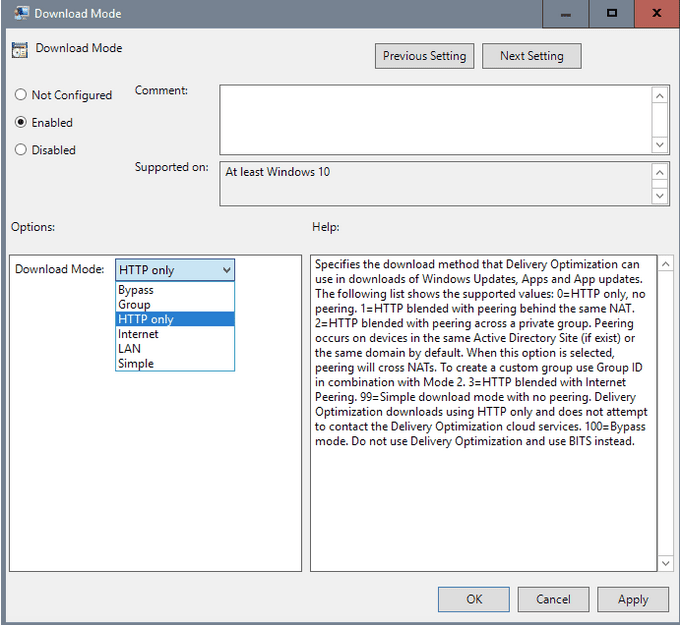

Step 7: Click on ‘Download Mode’ policy and select the Enabled option. In the drop-down menu of Download Mode, select your local network option and click Apply > OK.

select the Enabled option

Step 8: Another option mentioning ‘Max Upload Bandwidth‘ can be double-clicked for the required configuration. Please enable it and set the maximum upload bandwidth. After this, click on Apply > OK.

NOTE that if you wish to revert the changes, select Not Configured instead of Enabled.


Now you can set the bandwidth limit on Windows 10 for an update as well as download speed. We would also recommend you to keep a check on speeding up your internet browsing speed as some unknowing reasons might be interrupting with your internet speed. Make sure to check:

You can even drop your suggestions and queries in the comments section below and make sure to follow us on Facebook & YouTube for daily updates.
