How to Reset the TCP/IP Stack on Windows 10/11

Are you facing an error connecting to the internet connection on your computer? Do you wish to reset TCP/IP stack? One of the many issues people have noticed when installing Windows 11 is the inability to connect to the internet. While there might be other causes, a faulty TCP/IP is most frequent. However, many Windows 10 users have faced the same problem.

The Transmission Control Protocol/Internet Protocol Stack, sometimes known as the TCP/IP Stack, is an internet protocol stack. It is in charge of communicating over longer distances by breaking down digital information into packets and then providing them with a path between your device and the destination.

Your local storage contains all of the TCP/IP Stack settings. However, the data in your device storage can be damaged by viruses, third-party software, or other factors. When this occurs, your PC will fail to connect to a URL, even though it seems to be connected to the internet. However, you may resolve this issue by setting the TCP/IP Stack again. Let’s check out the details on how to reset TCP/IP stack.

How Does The TCP/IP Stack Work?

The TCP/IP Stack, like the OSI model, establishes a set of rules and standards for communication inside and across the various levels. Because they are based on the same criteria, these regulations ensure that diverse goods may interact with one another.

The first thing you should know is that the network stack (TCP/IP) only has four levels. The four levels are as follows: link layer, internet layer, transport layer, and application layer. (However, some individuals attempt to separate the Link layer into two layers: 1) the physical layer and 2) the link layer.) These four layers transfer data in a comparable way to the OSI model.

The main distinction is that, rather than framing data in terms of real functionality, the TCP/IP stack mainly frames the data in terms of the protocol used. A succession of protocols accepts and/or broadcasts data as it passes up and down the levels.

Thus, data may enter the application layer via HTTP messaging (imagine a setpoint change over here). It will exit the Stack as an electrical signal from the BAS controller from the Link layer.

What is Netshell Utility?

NetShell is a command-line utility that allows administrators to administer and configure important network services remotely. Because the NetShell command-line interface is scriptable, administrators may perform bulk settings or administrative operations from a centralized place.

NetShell uses contextsto operate. A context is a collection of administrative operations related to a certain area of networking capabilities. Contexts are often implemented using a NetShell helper, a DLL file that offers the capabilities for a particular context.

NetShell is ideal for developing scriptable contexts that allow administrators to control and configure essential network services. The NetShell API is useful for developers who want to construct contexts and provide scriptable network component administration.

We will use the Netshell software to reset TCP/IP stack routes. It allows you to see and alter your computer’s network setup. To use Netsh instructions to reset TCP/IP stack, use Command Prompt in Windows 10.

How To Reset The TCP/IP Stack On Windows 10/ 11?

Now, you have to simply follow these steps to correctly reset TCP/IP stack on Windows 10 and 11.

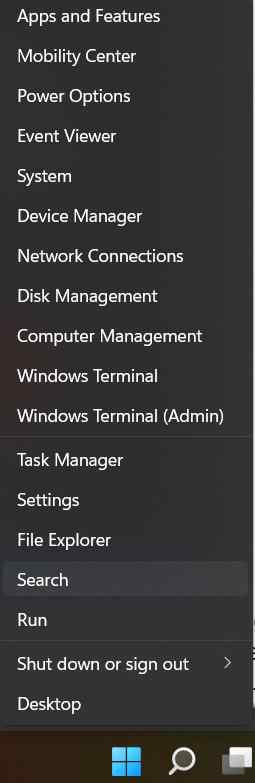

Step 1: Right-click the Start button and select Search.

reset tcp/ip stack

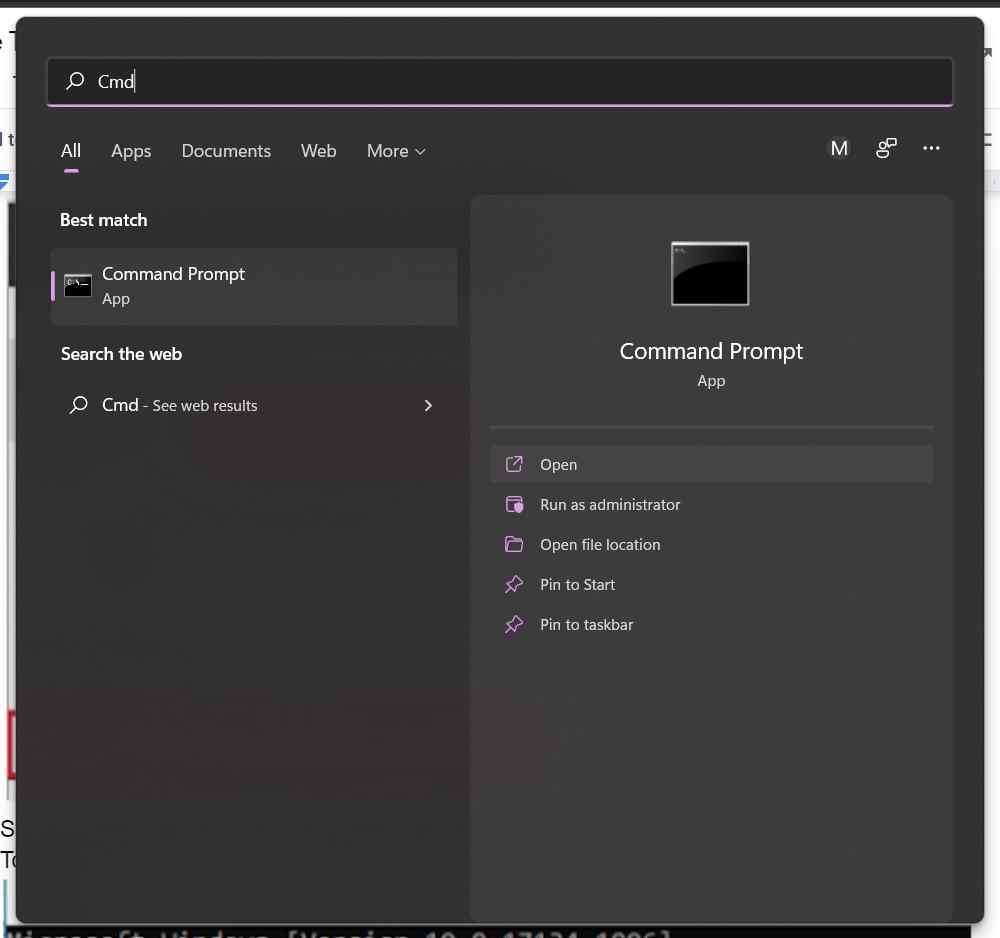

Step 2: Type cmd into the search bar. Right-click on Command Prompt in the results and select Run as Administrator. To allow the application to modify your computer, answer Yes to the User Account Prompt.

reset tcp ip stack in windows 11

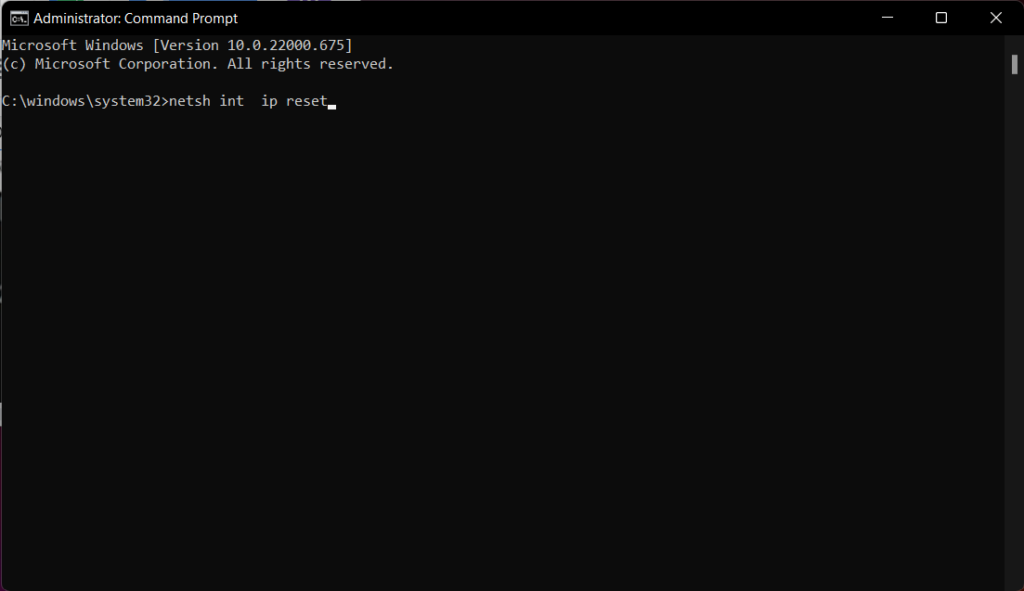

Step 3: In the Command Prompt window, you need to type the words netsh int ip reset. To execute the command, you have to simply press Enter.

reset tcp ip stack in windows 11

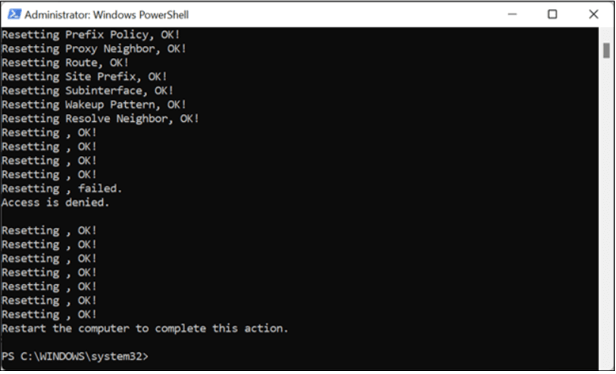

Step 4: If the process is completed properly, you should see a slew of “Resetting, OK!” messages in the window.

reset tcp/ip stack

Step 5: After finishing, restart your system.

FAQs

Q1. How do I reset the network stack?

A:  You need to follow the below steps to reset TCP/IP stack:

1. To begin, hit Win + R on your keyboard to open the Run dialogue box.

2. Then, type ‘cmd’ and concurrently press Ctrl, Shift, and Enter on your keyboard to launch the application with administrator privileges.

3. When the User Account Control dialogue box displays, choose Yes.

4. Next, enter the following command and hit Enter:

netsh int ip reload

5. Now, if you’re using IPv4, enter the following command and hit Enter:

reset netsh int ipv4

6. In contrast, if you’re using IPv6, enter the following command and press the Enter key:

reset netsh int ipv6

7. You would have successfully resolved the network difficulties if you had properly followed the procedures.

Q2. How to reinstall the TCP/IP stack?

A: Reinstalling and resetting the TCP/IP stack means the same. So, if you follow the above steps, you are trying to reinstall the TCP/IP stack or reset TCP IP stack in Windows 11.

Conclusion

TCP/IP is a critical component of how your Windows PC connects with other Internet-connected devices. But what happens if something goes wrong? How are you going to solve it? Fortunately, a reset TCP/IP stack may be all that is required. You’ve come to this article to learn how to reset it. Be extremely careful not to make any mistakes when following the procedures. Copy the commands from here and paste them into the cmd screen to repair it right away.

We hope the article was helpful for you in learning to reset TCP/IP stack on Windows.  We would like to know your views on this post to make it more useful. Your suggestions and comments are welcome in the comment section below. Share the information with your friends and others by sharing the article on social media.
